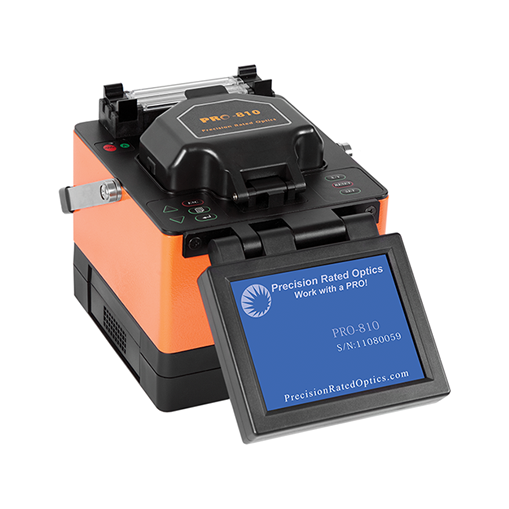

The PRO-810 fusion splicer is a dependable, core-alignment splicer that incorporates a user-friendly interface and includes a standard list of features rarely found on splicers at this price point. The rugged construction is perfect for harsh working conditions, whether it’s Premise, OSP or FTTx.
For ease of use, the PRO-810 features a reversible, 5-inch, HD LCD monitor, allowing for front or rear splicer orientation. Additionally, the PRO-810 is FiberBase-compatible, allowing results to be uploaded and integrated into the FiberBase software for permanent storage and retrieval.
The PRO-810 is, by far, the best valued splicer available on the market today.
Features
• Dual Independent Heaters
• Dual Axis View and Reversible Monitor
• 8 Second Splice Time
• 5” HD LCD Color Display
• Simultaneous Battery Charge and Splicer Operation
• Long Life Battery (Up to 200 Splice/Heat Cycles per Charge)
Specifications:
Applicable fibers: SM, MM, DS, NZ-DS (G-655), EDF and Others
Cladding Diameter (µm): 100 to 150
Coating Diameter (µm): 100 to 1000
Fiber Cleave Length: 13-16mm (Adjustable) ~ 16mm (Standard)
Splicing Mode: Auto & Manual
Average Splice Loss: 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS)
Return Loss: ≥60dB
Tension Test: 2.0N (200gf) (Standard)
Monitor: Color 5.0”in Diagonal HD LCD, 360x Magnification
Protection sleeve length (mm) 20, 40, 60
Splice Program: 80 Groups
Languages: English, Korean, Russian, Spanish , French, Portuguese and Others
Environmental Conditions: Operating Temperature: -13~ +122oF (-25~ +50oC), Storage Temperature: -40~ +176oF (-40~ +80oC) 0~95%RH (Humidity) 0~4000m (Altitude)
Interface: USB Interface – Updates & Data Transfer
Power Supply: AC Adapter: 85~260V Input Voltage Internal Battery: 12V, 10Ah, 200 Splices and Oven Uses DC Adapter: 12V, Optional Multi-Purpose External Battery
Warranty: Standard 1 Year Manufacturer Warranty (Extended Warranty Available)
PRO-810 Fusion Splicer Standard Package Includes:
Fusion Splicer, Internal Battery, Charger, Spare Electrodes, Cooling Tray, Instruction Manual, Carry Case,
Fiber Cleaver, Fiber Stripper, AC Adapter, AC Power Cord
Optional Accessories:
Battery: FS-BAT-810
Manual: FS-MANUAL-810
Electrodes: FS-ELEC-810
AC Adapter: FS-AC-1
Cleaver: FS-C20
AC Power Cord: FS-AC-2
